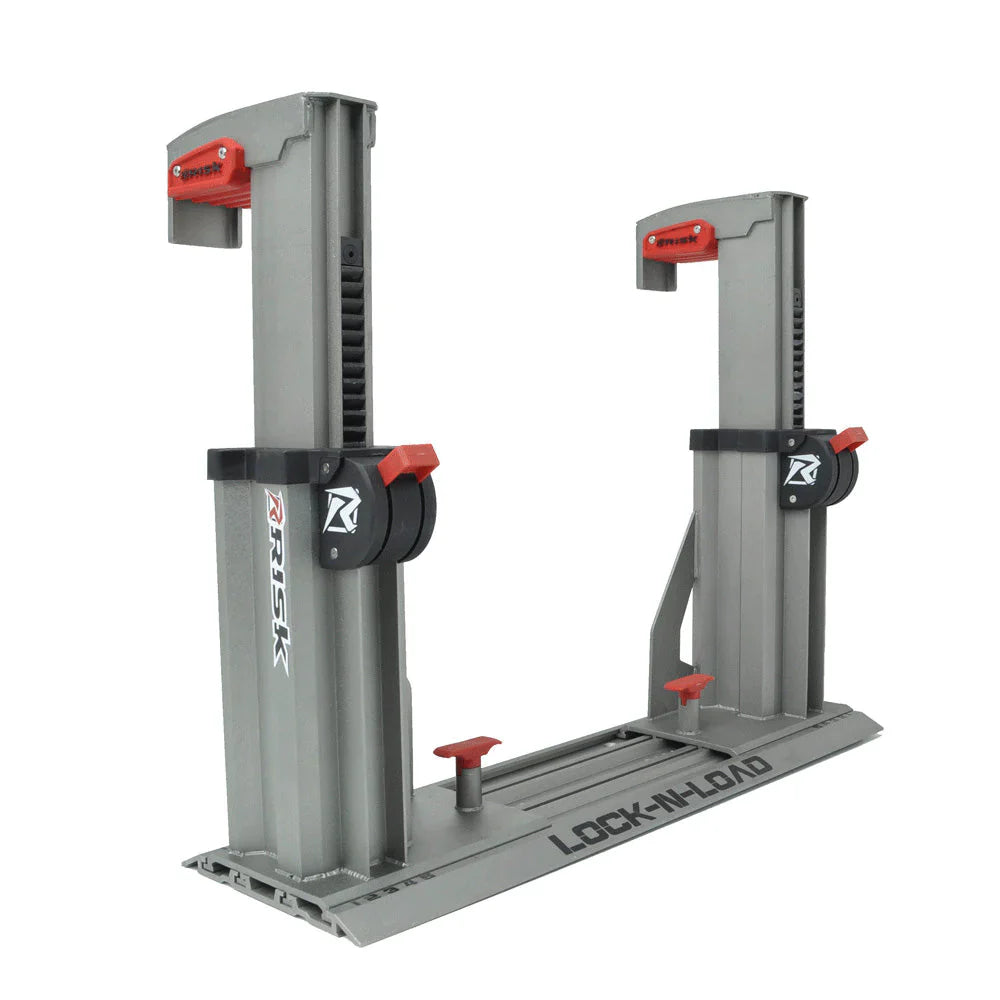

Risk Racing Lock N Load PRO, Full Size Heavy Duty

Name: Risk Racing Lock N Load PRO, Full Size Heavy Duty
Brand: Risk Racing
SKU: 00175
Price: 358.2 GBP
Availability: InStock

£358.20 GBP

Sale Sold out

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Lock-n-load PRO HD dimensions poster featuring semi-transparent front facing dirt bike with text 12 inches thru 21 inches wide, 10.5 inches thru 15.5 inches tall, for accuracy measure both footpegs at the same time

Designed for Trail, MX and Enduro bikes
(or bikes with similar geometry)
Max Weight: 400lbs (181.44Kg)

▼Features

Best for heavier Enduro style bikes, or for use on small trailers and/or use on rugged terrain
Reduce pressure on fork seals
No more straps or wheel chocks
Load more bikes and gear in your truck, van, or trailer
Quick release from floor
Fully adjustable
Mounts in your trailer, truck, or van
Extra mounting plates available
Works with 2-strokes and 4-strokes

◄Specifications

LOCK-N-LOAD PRO HD
Model# 00175
Size: 21” x 8” x 12” (53.34cm x 20.32cm x 30.48cm)
Weight: 14.2lb (6.44kg)
Plate Dimensions: 21.25” x 6.75” x 0.5” (54cm x 17.1cm x 1.3cm)
1-year warranty

Designed for Trail, MX and Enduro bikes
(or bikes with similar geometry)
Max Weight: 400lbs (181.44Kg)

▼How to measure your bike

To properly measure your bike, ask for assistance to hold your bike perfectly vertical and use two tape measures at the same time to measure footpeg height. Make sure both measurements are the same. Feel free to call if you have any bike-specific questions. Select your desired size in the online store when ordering.

The jaws are fairly large and we have found that they will fit most oversized or rotating aftermarket foot pegs on the market.

◄Included

[1] Lock-N-Load PRO HD
[1] Mounting Hardware
[1] Instruction Sheet

The All New Lock-N-Load Pro HD

The new Lock-N-Load PRO HD is designed to transport a wider variety of bikes than its predecessors, including heavier Enduro-style motorcycles. Ranging from small trail bikes like the Honda XR150L and Kawasaki KLX230, to larger enduro bikes like the Suzuki DR 650 and KTM 690 Enduro. The HD can even handle small adventure bikes such as the BMW G 310 GS and KTM 390 ADVENTURE (current weight limit of 400lbs).

Similar to the Lock N Load PRO and PRO Mini, the Lock-N-Load PRO HD is designed to grip the bike by the foot pegs, distributing the load evenly to minimize the risk of blown fork seals and ensuring both the front and rear remain secure. Say goodbye to a web of tie-down straps and inconvenient wheel chocks, as the Lock-N-Load PRO HD secures bikes quickly, as well as saves valuable space in trucks, vans, trailers, or toy haulers.

Aluminum Construction

Due to the reinforced design of The Lock-N-Load PRO HD, it is the strongest, most robust option for customers who haul their bikes in small trailers with limited suspension, or for customers who drive on rough terrain to get to their riding destination.

Built tough to transport bikes safely and lightweight enough to store on a shelf in your garage when not in use.

Switch Release

Simply flip the switch to lock or release the arm ratchet system. Flip the switch down when locking the bike down then flip the switch up to allow the jaws to release.

Fully Adjustable

Adjust the new Lock-N-Load Pro HD on the fly to a large range of bikes with the new ratchet system.

Quick Release Pin

The new pin/thru hole design makes removing/adjusting the arm uprights even faster and easier than before. The low-profile plate mounts into your truck, trailer, or van. Allows lateral adjustability for wider bikes.

Mounting Plate

The low profile plate mounts into your truck, trailer or van. Allows lateral adjustability for wider bikes.

Black spray lined truck bed featuring two Lock-n-load mounting plates installed in between the wheel wells. Also features two ez jugs installed. White truck cab with huge Risk Racing sticker in back window.

Mount Your Motorcycle In Any Of Your Vehicles

Icon of a motorhome with title: motorhome

Icon of a semi with title: oh, you're factory!

Icon of an airplane with title: captain fancy

Icon of a helicoptor with title: you baller!

How to Install a Lock-N-Load Pro Series

Wood Floor Installation and Use

Truck Bed Installation and Use

LNL Pro Now Available in Three Sizes

Bike Size Ranges: 50cc Jr to 110cc Trail
(max weight: 200 lbs)

Bike Size Ranges: 85cc to Enduro
(max weight: 270 lbs)

Bike Size Ranges: Trail, MX and Enduro bikes
(max weight: 400 lbs)

Feature Comparison of the Lock-N-Load Family


Features	Lock-N-Load Pro HD	Lock-N-Load Pro	Lock-N-Load Pro Mini	Lock-N-Load (Original)	Lock-N-Load Junior
MSRP	$349.99 USD	$299.99 USD	$299.99 USD	$199.99 USD	$199.99 USD
Buy Now	Add to cart	Add to cart	Add to cart	Add to cart	Add to cart
Saves your fork seals by reducing pressure on them	✔	✔	✔	✔	✔
No more straps or wheel chocks	✔	✔	✔	✔	✔
Load more bikes and gear in your truck, van, or trailer	✔	✔	✔	✔	✔
Quick release from floor	✔	✔	✔	✔	✔
Fully adjustable	✔	✔	✔	✘	✘
Easy storage when not in use	✔	✔	✔	✘	✘
Types of bikes that can be hauled	Designed for heavier Enduro style bikes ranging from small trail bikes like the Honda XR150L and Kawasaki KLX230, to larger enduro bikes like the Suzuki DR 650 and KTM 690 Enduro. The HD can even handle small adventure bikes such as the BMW G 310 GS and KTM 390 ADVENTURE. Best option for use on small trailers and/or rugged terrain.	Generally most medium to full size dirt bikes, trial bikes and motocross races bikes. See details for proper bike fitment	Generally most small size dirt bikes, trial bikes and motocross races bikes. See details for proper bike fitment	Full size MOTOCROSS SPECIFIC RACE BIKES only	Generally 85cc Motocross Race Bikes only (Including the CRF150R)
Extra mounting plates available (Sold Separately)	✔	✔	✔	✔	✔
Works with 2-strokes and 4-strokes	✔	✔	✔	Limited - See details for proper bike fitment	Limited - See details for proper bike fitment
Dirt Bike Maximum Weight	400 lbs	270 lbs	200 lbs	Restricted by bike size, not weight	Restricted by bike size, not weight
Dirt Bike Minimum Peg Width	12"	12"	12"	18"	18"
Dirt Bike Maximum Peg Width	21"	21"	21"	22"	22"
Dirt Bike Minimum Peg Height	10.5"	12.5"	8.5"	15"	12.5"
Dirt Bike Maximum Peg Height	15.5"	18"	12"	17.5"	14.75"
Fitment Guides
Weight of the Lock-N-Load	14.2lb	13.2lb	12.6lb	20lb	19lb
